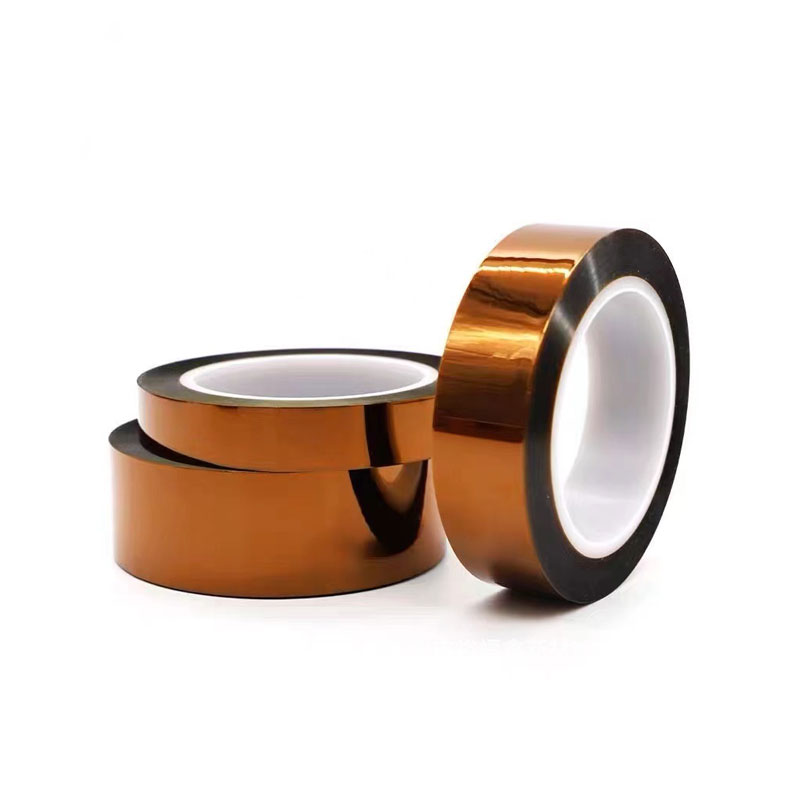

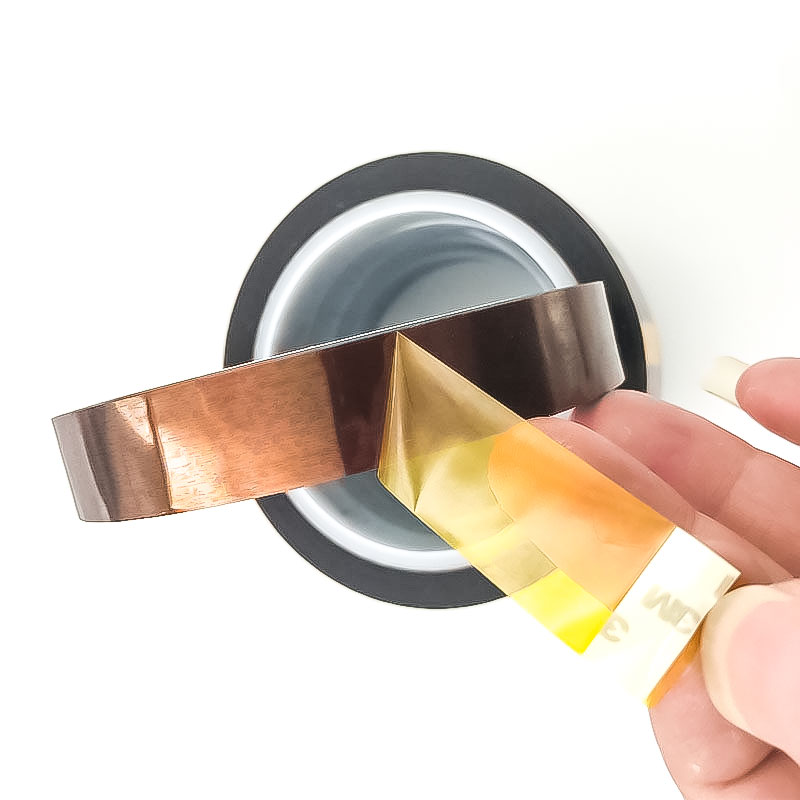

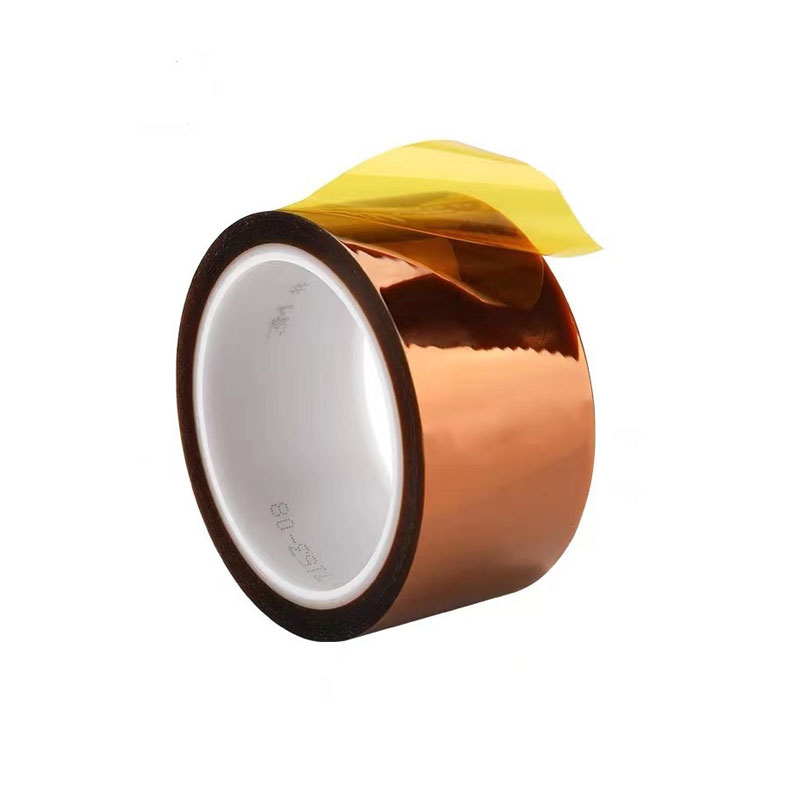

3M 1205 Polyimide Film Electrical Insulating Tape For PCB Wave Soldering

Brand Name:3M
Model Number:1205
Adhesive:Acrylic
Adhesive Side:Single Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:Polyimide Film
Feature:Waterproof
Use:MASKING
SIZE:Customized
Thickness:0.08mm

3M 1205 Polyimide Film Electrical Insulating Tape For PCB Wave Soldering

3M1205 polyimide film electrical tape is a polyimide film backed electrical tape. This tape, which uses polyimide as the base material, is coated with acrylic adhesive, which provides optimal adhesion. It can withstand large temperature differences and maintain its physical and electrical properties unchanged. Its thermosetting silicon/silicon pressure sensitive adhesive improves the stability of polyimide. This flame-retardant tape is suitable for applications that require thin insulation material to wrap transformers, capacitors, and wiring harnesses. No loss of electrical performance and tensile strength.



Application

This tape is designed to secure the lead terminal board. It is very suitable for use as a wave soldering tape in printed circuit board components. Widely used in circuit boards, circuit boards, wave soldering protection gold fingers, and so on.

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.



Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.

If the 3M 1205 Polyimide Film Electrical Insulating Tape For PCB Wave Soldering to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We are equipped with a production factory to serve you.

Application

This tape is designed to secure the lead/terminal board. It is very suitable for use as a wave soldering tape in printed circuit board components. Widely used in circuit boards, circuit boards, wave soldering protection gold fingers, and so on.

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Product Name
3M 1205 Polyimide Film Electrical Insulating Tape For PCB Wave Soldering
Adhesive Type
acrylic
color
amber
Temperature resistance
155℃
Adhesion to Steel
30N/100mm
Material
polyimide film
Features
Highly compatible with pressure sensitive acrylic adhesive.

Flame retardant with polyimide backing.
Suitable for wave soldering masking tape in printed circuit board components.
Designed for fixing leads and terminal boards.
Withstand a rated temperature of -40 to 311 ° F (-40 to 155 ° C).

Thickness
0.08MM
