3M 1218 Polyimide Film Electrical Tape Insulation Electrical Tape For Capacitor

Brand Name:3M
Model Number:1218
Adhesive:Acrylic
Adhesive Side:Single Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:Polyimide
Use:MASKING
SIZE:Customized
Thickness:0.076mm
Color: Amber (coffee, amber)
Dielectric Strength:6000V
Elongation at break: 55%
Adhesion to steel: 25/2.8
Breaking strength: 30/53
Relative trace index: IIIb

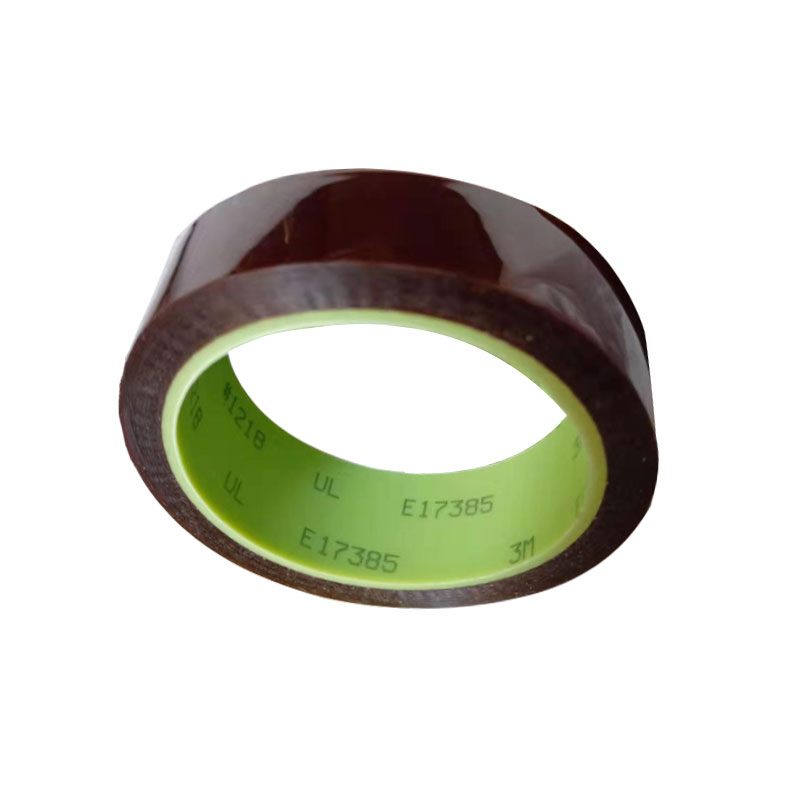

3M 1218 Polyimide Film Electrical Tape Insulation Electrical Tape For Capacitor

3M 1218 is an electrical tape with a pressure sensitive acrylic adhesive that provides high adhesion strength and durability. It is suitable for use as a covering material for many flexible printed circuits. Suitable for high-temperature electrical applications that require thin insulation materials to wrap capacitors, coils, and wiring harnesses. This tape has a polyimide film backing, which has excellent heat resistance and solvent resistance. This type of tape has a rated voltage of 600 volts and can withstand temperatures up to 160 degrees Celsius.





Application

Widely used in coils, capacitors, and wire entanglement, etc.

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.





Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.

If the 3M 1218 Polyimide Film Electrical Tape Insulation Electrical Tape For Capacitor to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We are equipped with a production factory to serve you.

Application
Widely used in coils, capacitors, and wire entanglement, etc.

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Product Name
3M 1218 High Temperature Resistance Polyimide Film Electrical Tape Insulation Electrical Tape For Capacitor
Adhesive Type
acrylic
color
amber
Temperature resistance
160℃
Adhesion to Steel
30N/100mm
Material
polyimide film
Features
Excellent heat resistance, solvent resistance, and flame retardancy
Thickness
0.076MM
