3M 470 Electroplating tape Single Sided Masking Tape Anodizing Vinyl Tape

Brand Name:3M
Model Number:470
Adhesive:Acrylic
Adhesive Side:Single Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:PVC
Feature:Heat-Resistant
Use:MASKING
SIZE:Customized
Thickness:0.18mm

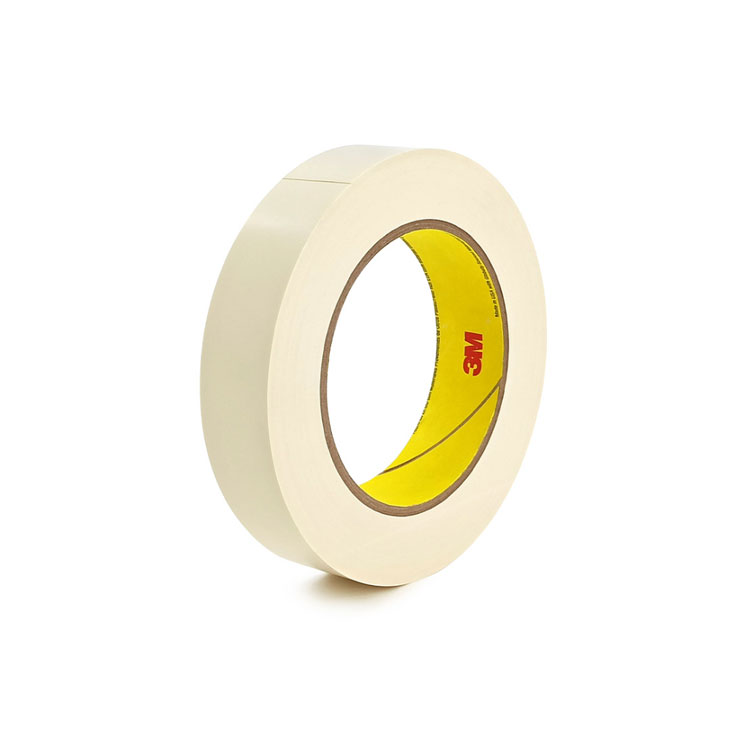

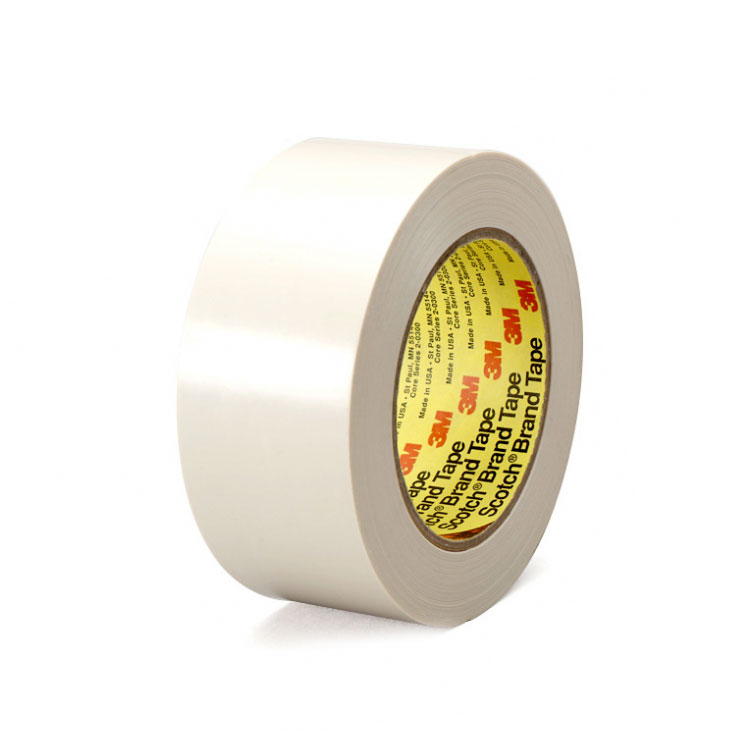

3M 470 Electroplating tape Single Sided Masking Tape Anodizing Vinyl Tape.

3M470 electroplating tape is a soft and abrasion-resistant vinyl tape. The color is yellow-brown and rubber adhesive. It has good conformability and can be attached to the surface to be bonded. This tape has a good shielding effect on chemical solutions. The chemical resistance of the vinyl backing material and its flexibility, combined with the chemical resistance and instant adhesive characteristics of the rubber resin adhesive, make the 3M electroplating tape very good The ground is used to shield the non-electroplating area and is widely used in the electroplating industry.



Applications:

It is widely used in anodizing, milling, etching and hammering operations, and electroplating industries, and can be used to shield non-electroplating areas.

Die cutting designs can includes holes, shapes, oversized lines (for easy removal) and complimentary products can also be incorporated.
Die cutting tapes enable you to save a significant amount of time when applying the adhesive tape and to save money for cuts through slitting.



We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

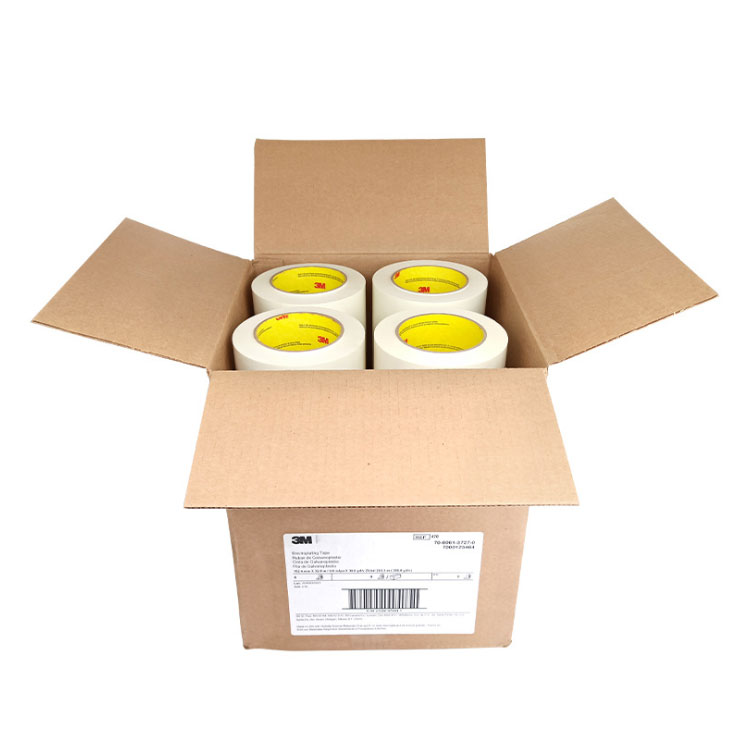

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.

High temperature 3m 471 tape pvc floor marking tape paint masking tape



If the 3M 470 Electroplating tape Single Sided Masking Tape Anodizing Vinyl Tape to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

Applications:
It is widely used in anodizing, milling, etching and hammering operations, and electroplating industries, and can be used to shield non-electroplating areas.

Die cutting designs can includes holes, shapes, oversized lines (for easy removal) and complimentary products can also be incorporated.
Die cutting tapes enable you to save a significant amount of time when applying the adhesive tape and to save money for cuts through slitting.

Product Name
3M 470 Electroplating tape Single Sided Masking Tape Anodizing Vinyl Tape
Adhesive Type
Acrylic Adhesive
color
yellow
Temperature resistance
100℃
Adhesion to 304 steel plate
51N/100mm
Features
1. Excellent resistance to most chemicals used in typical electroplating operations.
2. Prolonged exposure to high temperature (above 250 degrees Fahrenheit/121 degrees Celsius) and thermal caustics may cause weakening of adhesion.
3. Resistant to most common solvents, care should be taken to avoid ketones, chlorinated hydrocarbons and esters, found in paint thinners, degreasers, paint removers, etc. This may cause the backing to swell or curl.
4. The backing accepts marking inks and is printable during the heat transfer process
Thickness
0.18mm
