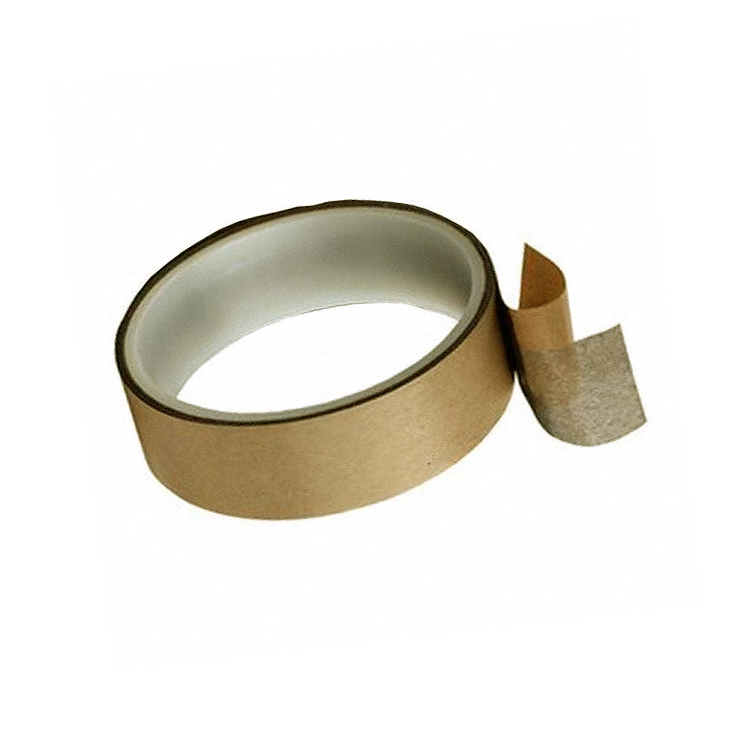

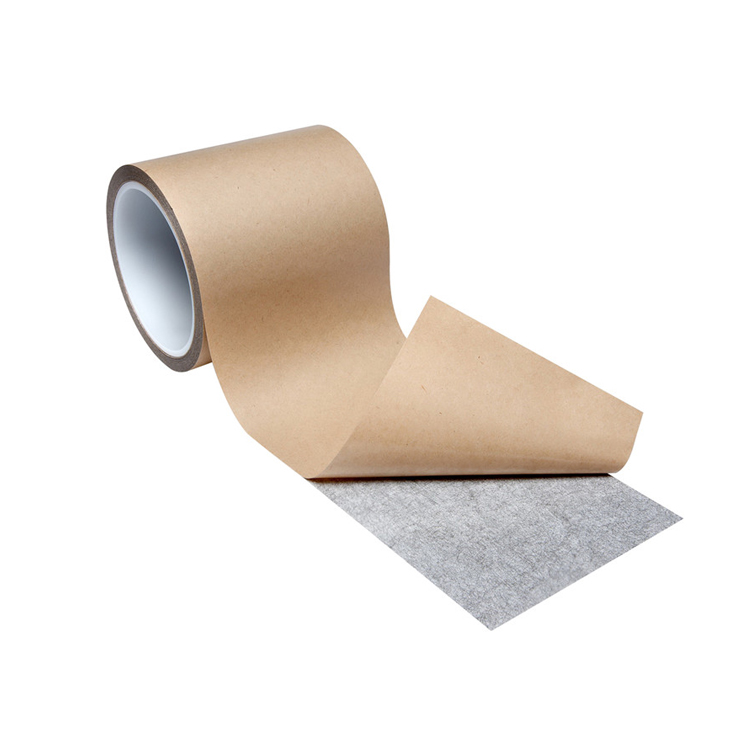

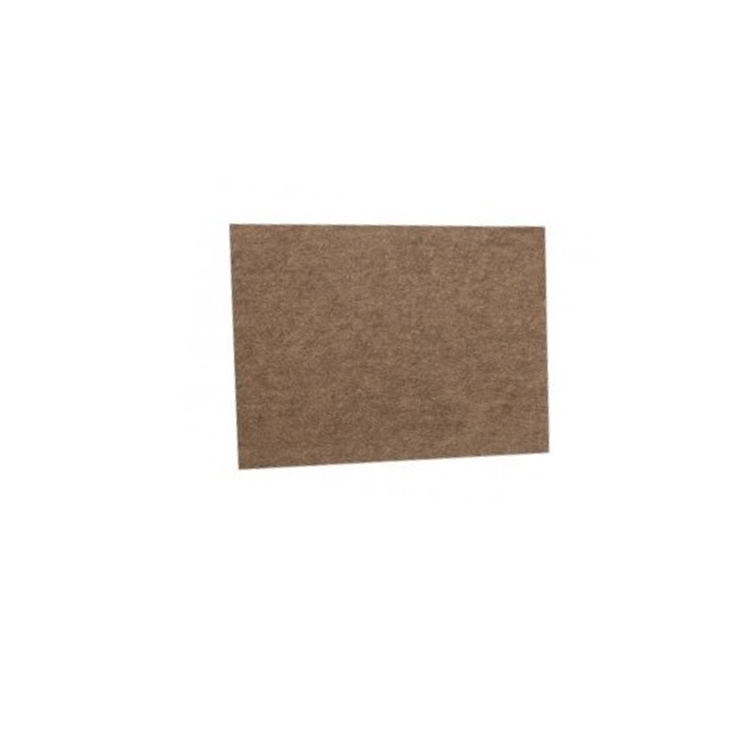

Repacement 3M 9713 XYZ Electrically Conductive Double Sided adhesive Tape

Brand Name:3M
Model Number:3M 9713
Adhesive:Acrylic
Adhesive Side:Double Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:Kraft Paper
Feature:Heat-Resistant
Use:MASKING
SIZE:Customized
Thickness:0.09mm

Repacement 3M 9713 XYZ Electrically Conductive Double Sided adhesive Tape
3M 9713 is a double sided, isotropically conductive pressure sensitive tape which conducts electricity through the thickness (the Z-axis) and the plane of the adhesive (X, Y planes). Provides good adhesion and electrical performance. 3M XYZ-Axis Electrically Conductive Tape 9713 is an isotropically conductive pressure sensitive tape. 3M tape 9713 conducts electricity through the thickness (Z-axis) and in the plane of the adhesive (X, Y planes) and is ideal for EMI/RFI shield and EMI/RFI gasket attachment to metal surfaces. The tape consists of a high performance 3M adhesive loaded with conductive fibers. The result is a double-sided tape providing both good adhesion and good electrical performance. The conductive fibers in 3M tape 9713 also provide improved handling characteristics.

Applications:
Antenna Bonding (with Grounding), EMI Shielding (with Grounding), Flex Bonding (with Grounding), Flex Stiffener Bonding (with Grounding), Grounding, Metal to Metal Bonding (with Grounding), Static Dissipation



Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control
Prompt Delivery
Earth-friendly Products
In a Variety of Design
Small Order Acceptable
OEM Accepted

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm,standard length:50M

OEM Size: Special length, thickness or combinations can be supplied per customer’s request.Products can be supplied in roll,tape,sheets or shapes per customer’s request.Only you provide the CAD drawing,we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.

High temperature 3m 471 tape pvc floor marking tape paint masking tape



If the Repacement 3M 9713 XYZ Electrically Conductive Double Sided adhesive Tape to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

Applications:
Antenna Bonding (with Grounding), EMI Shielding (with Grounding), Flex Bonding (with Grounding), Flex Stiffener Bonding (with Grounding), Grounding, Metal to Metal Bonding (with Grounding), Static Dissipation

Product Name
Repacement 3M 9713 XYZ Electrically Conductive Double Sided adhesive Tape
Adhesive Type
Conductive Acrylic
Filler Type
Conductive Fibers
Temperature resistance
60°F – 100°F (15°C – 38°C)
Features
* Thinner adhesive than Tape 9712
* Isotropic XYZ-axis electrical connectivity
* Uses Nickel plated carbon scrim (a more conductive scrim)
* Good contact with both hard and soft surfaces
* Excellent die-cutting and converting capabilities
* Can be applied in strips or die cut to specific shapes & sizes
Thickness
0.09mm
