Xst2011BFR Flame Retardant Acrylic Foam Double Sided Tape For Battery Cell

Brand Name:Xinst
Model Number:2011BFR
Adhesive:Acrylic
Adhesive Side:Double Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:Closed-cell flame retardant black acrylic foam
Feature:Flame retardant
Use:MASKING
SIZE:Customized
Thickness:1.1mm
Width: 600mm
Length: 33M

Xst2011BFR Flame Retardant Acrylic Foam Double Sided Tape For Battery Cell

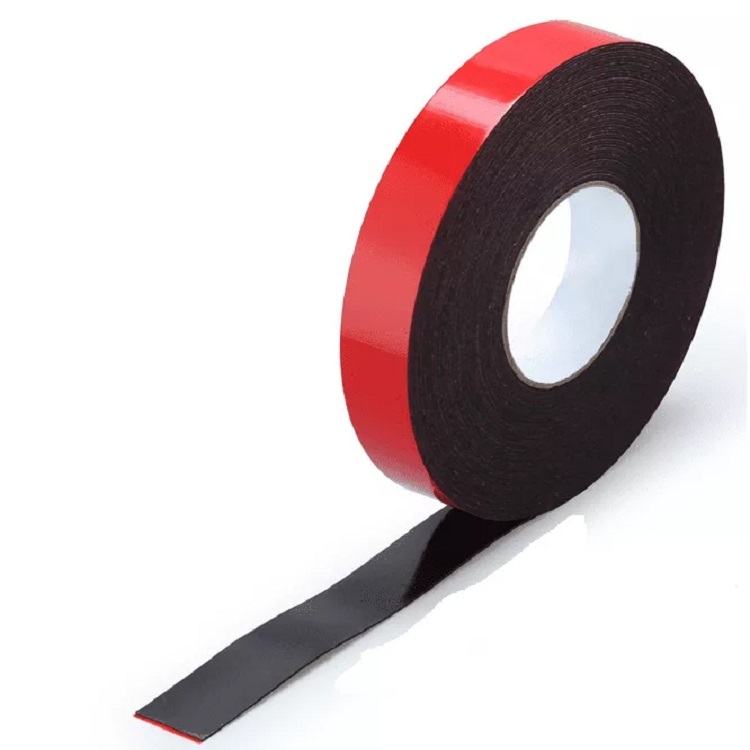

XST2011BFR is a black flame retardant acrylic foam double-sided tape. One-piece closed-cell acrylic foam tape produced using a unique solvent-free manufacturing technology. The product has good initial adhesion and excellent final adhesion, and has super viscous strength and shear strength for high and medium surface energy materials.



Product Features:

  1. Excellent UV resistance and weather
  2. Closed-cell foam structure with reliable sealing and waterproof
  3. It has super bonding strength and shear
  4. Excellent flame retardant performance, can pass UL94



Applications:

Excellent adhesion to a wide range of high and medium surface energy substrates, including a variety of metals, glass, and various plastics.

For example:

The power battery cell is pasted with the battery cell Module and shell pasting, etc.



Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.



High temperature 3m 471 tape pvc floor marking tape paint masking tape



If the Xst2011BFR Flame Retardant Acrylic Foam Double Sided Tape For Battery Cell to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

Applications:

Excellent adhesion to a wide range of high and medium surface energy substrates, including a variety of metals, glass, and various plastics.

For example:

The power battery cell is pasted with the battery cell Module and shell pasting, etc

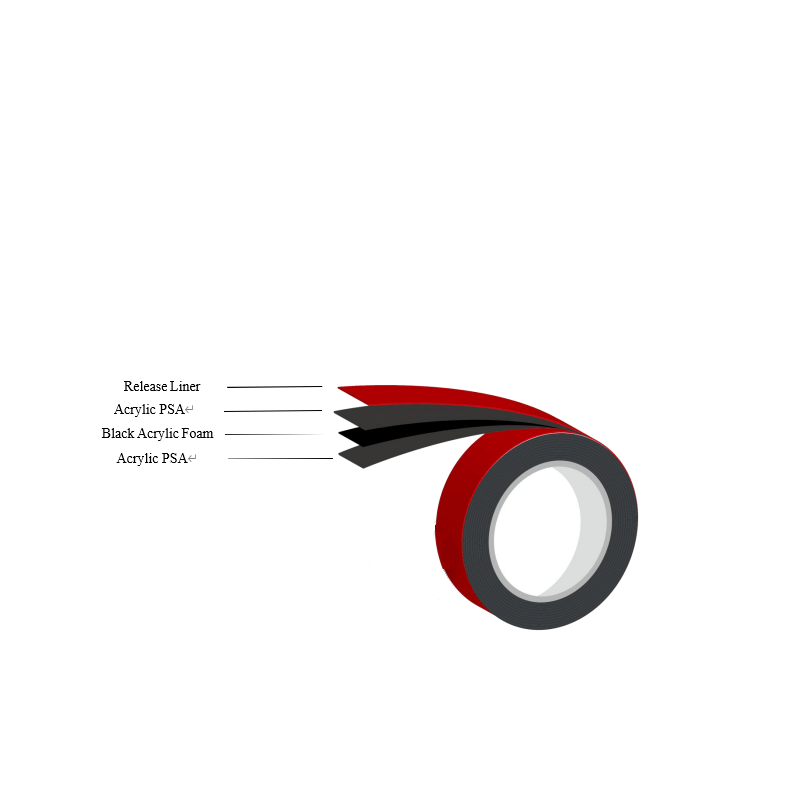

Material Description
Total thickness (mm) 1.1±0.11
Substrate type Closed-cell flame retardant black acrylic foam
Adhesive type Flame retardant acrylic pressure sensitive adhesive
Tape color Black


Release material



Red PE release film

Standard 610 mm x 33 m

(Other specifications can be customized)

Physical Properties Performance

Standard

Standard Test


90° peeling force LS surface (N/25mm)

20min 30





ASTM D3330

72h 50


90° peeling force NLS surface (N/25mm)

20min 30
72h 50


Dynamic shear strength (Kpa)

20min 400

ASTM D1002

72h 500


Static shear force (min)

25℃/1000g ≥10000

ASTM D3654

(25mm*25mm)

70℃/500g ≥10000
Flammability rating V0 UL94
Temperature resistance Excellent -
UV resistant Excellent -


Remarks

LS: Release material surface NLS: non-release material surface
