3M 44 Low-Halogen electrical insulating adhesive tape
Adhesive Side:Single Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:Polyester
Color:Transparent
Width:0.75" Width
Length:90yd Length
Thickness:5.5mil

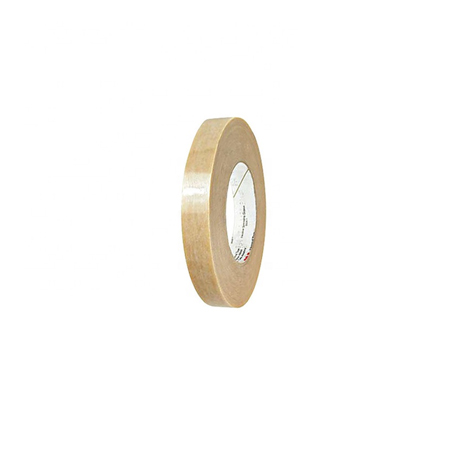

3M 44 Low-Halogen electrical insulating adhesive tape
3M 44 Low-Halogen electrical insulating adhesive tape is a low-halogen, combination polyester film/polyester web film coated with a rubber thermosetting pressure-sensitive adhesive.
This UL recognized conformable tape is puncture resistant with excellent electrical properties.
Low-Halogen electrical insulating adhesive tape features:
Excellent puncture resistance, excellent electrical performance, high adhesion, adhesive RT, thickness 5.5mils/0.139mm, resistance voltage 5500V, insulation resistance >1×106, breaking strength 40/70, elongation at break 50%, electrolytic corrosion coefficient 1.0.
Our Factory Competitive Advantages:
Well Competitive Prices and High Quality Control
Prompt Delivery
Earth-friendly Products
In a Variety of Design
Small Order Acceptable
OEM Accepted
Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm,standard length:50M
OEM Size:Special length, thickness or combinations can be supplied per customer’s request.Products can be supplied in roll,
tape,sheets or shapes per customer’s request.Only you provide the CAD drawing,we can die cut any size for you.
Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton
If the 3M 44 Low-Halogen electrical insulating adhesive tape to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.
Applications:
used for stick-wound coils/transformers and in bobbin-wound coils for banding, anchoring, and insulating, and for protecting start wires, leads, terminal strips, insulation paper, end turns and connections in motors and transformers.
|
Product Name
|
3M 44 electrical insulating adhesive tape
|
|
Adhesive Type
|
Rubber Thermosetting
|
|
Breaking Strength
|
40 lbs/in (70 N/10 mm)
|
|
Elongation (% at break)
|
50%
|
|
Adhesion to Steel
|
65 oz/in (7.1 N/10 mm)
|
|
Temperature Range
|
-40ºC to 130ºC
|
|
Features
|
Temperature resistance 130 (℃) puncture resistance, excellent electrical properties;Tough, from the shape of good;
used for insulation, fixing and binding of motors and transformers.
|
|
Thickness
|
0.14mm
|
