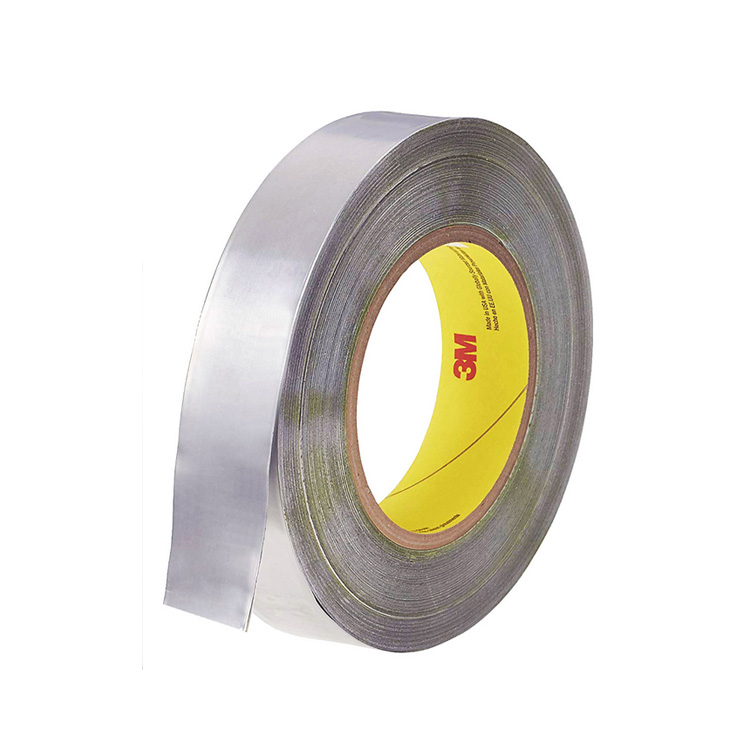

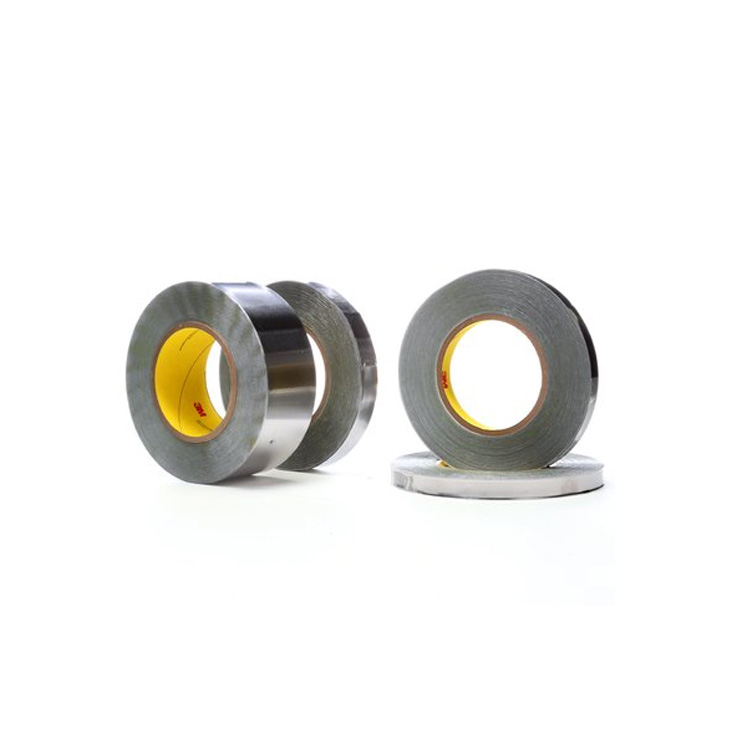

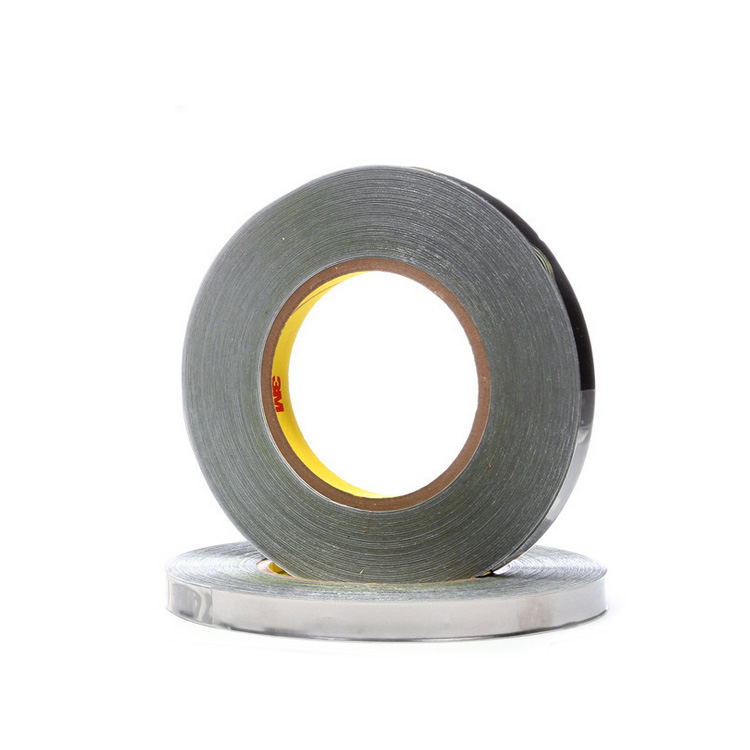

3M420 Dark Silver Lead Foil Tape, Electrically and Thermally Conductive Tape

Brand Name: 3M
Model Number: 420
Adhesive: Acrylic
Adhesive Side: Double Sided
Adhesive Type: Pressure Sensitive
Design Printing: No printing
Material: ALUMINIUM FOIL
Feature: Heat-Resistant
Use: MASKING
SIZE: Customized
Thickness: 0.17mm

3M420 Dark Silver Lead Foil Tape, Electrically and Thermally Conductive Tape

3M420 is a conductive and thermal tape. It has the characteristics of flame retardant, moisture resistance, climate resistance, UV degradation resistance, chemical corrosion resistance and radiation resistance.
It is a dark grey lead foil backing tape coated with a unique rubber adhesive that has good initial grip and long-lasting adhesion.

It is a very gregarious and flexible tape that can form detailed and complex shapes and patterns. The lead foil substrate can be polished to completely cover the binder and allow full contact between the lead foil and the metal base. This metal-to-metal contact results in continuation of the electrical path, reducing the accumulation at the bonding interface. This lead foil strip is formulated to conduct electricity and heat and has strong acid and alkali resistance, making it ideal for electroplating or as a radiation barrier.



3M 420 Dark Silver Lead Foil Tape Applications:

3M420 tapes are commonly used for electroplating, radiation shielding, moisture proof, chemical milling, X-ray shielding, etc.

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.



Our Factory Competitive Advantages:

* Well Competitive Prices and High Quality Control
* Prompt Delivery
* Earth-friendly Products
* In a Variety of Design
* Small Order Acceptable
* OEM Accepted

Roll Size: 3″ paper or plastic core; tape width: 2mm-1200mm; standard width: 1200mm, standard length:36YD.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request.Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.



High temperature 3m 471 tape pvc floor marking tape paint masking tape



If the 3M 420 Dark Silver Lead Foil Tape, Electrically and Thermally Conductive Tape to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

3M 420 Dark Silver Lead Foil Tape, Electrically and Thermally Conductive Tape Applications:

3M420 tapes are commonly used for electroplating, radiation shielding, moisture proof, chemical milling, X-ray shielding, etc.

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Product Name
3M 420 Dark Silver Lead Foil Tape, Electrically and Thermally Conductive Tape
Adhesive Type
Acrylic
Color
silver
Temperature Resistance
150℃
* Adhesion to 304 steel plate
51N/100mm
Features
1. Good consistency
2, good thermal performance, in -54°C-106°C has a good shielding effect, and can withstand a short time of higher temperature shielding effect
3. Good electrical and thermal conductivity
4, easy to die cutting and use
5. Reducing corrosion, hydrogel adhesives help prevent corrosion of steel bars.
Thickness
0.17mm
