50um OCA optical Clear adhesive tape double sided tape for display panels

Brand Name:Xinst
Model Number:Xinst 8202G
Adhesive:Acrylic
Adhesive Side:Double Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:Silicone foam
Feature:Heat-Resistant
Use:MASKING
SIZE:Customized
Thickness:0.05 mm

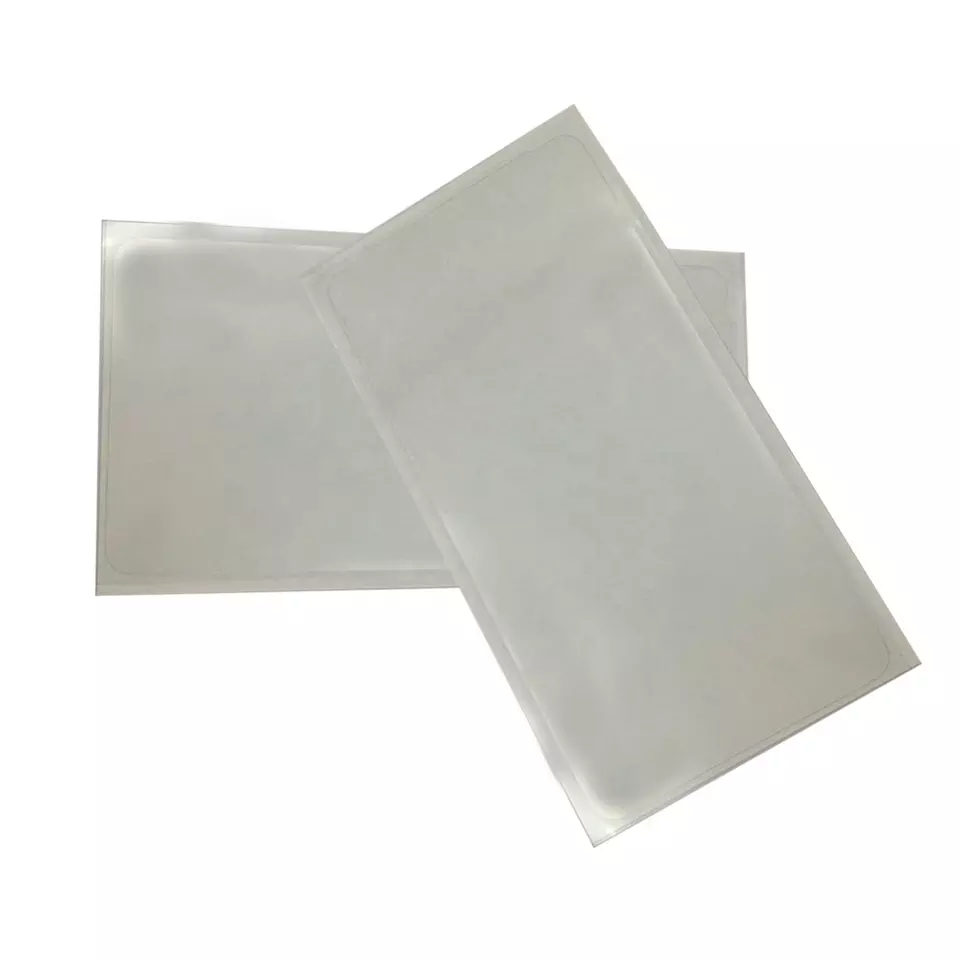

50um OCA optical Clear adhesive tape double sided tape for display panels
XINST 50um OCA optical Clear adhesive tape is highly specialized optically clear free-film adhesives offering superior clarity and excellent adhesion to various types of transparent substrates.They are easy to convert and are contaminant-free,resulting in improved bubble resistance in laminations exposed to high temperature and high humidity. Common applications include displays, touch panels and others requiring an optically clear bond.



Applications:

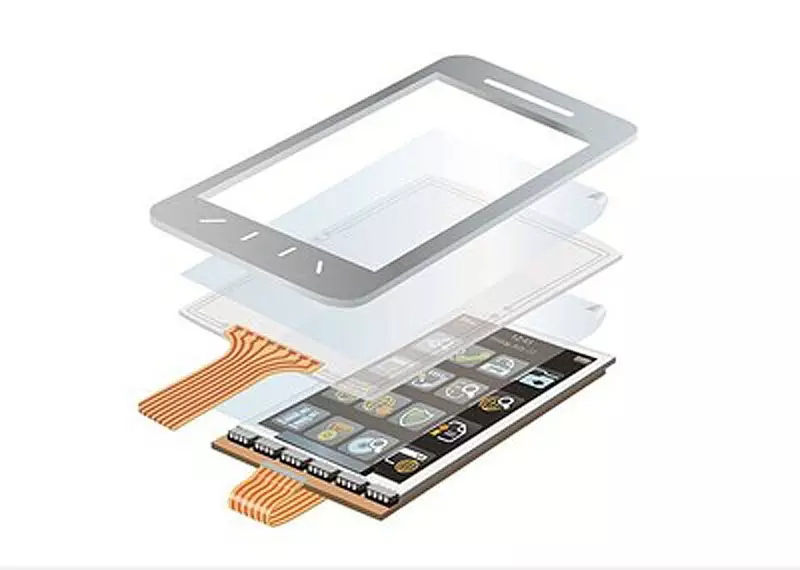

* Touch screens- for bonding film and glass laminates.
* Avionics/military displays.
* Transparent graphic overlays.
* Optical management films for LCD.
* Projection screens.



We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

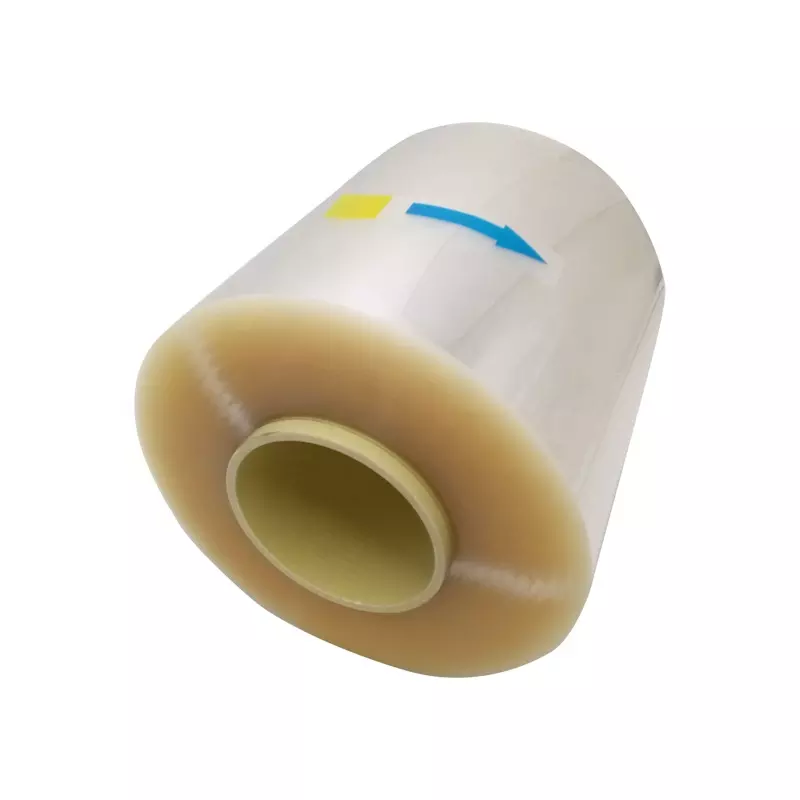

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.



Xinst 0611 Semiconductor Wafer Mounter dicing Tape single sided thermal release tape

If the 50um OCA optical Clear adhesive tape double sided tape for display panels to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

Applications:
* Touch screens- for bonding film and glass laminates.
* Avionics/military displays.
* Transparent graphic overlays.
* Optical management films for LCD.
* Projection screens.



We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Product Name
50um OCA optical Clear adhesive tape double sided tape for display panels
Adhesive Type
Optical Acrylic adhesive
color
clear
Temperature resistance
90℃
Adhesion to 304 steel plate
51N/100mm
Features
• Superior transparency.
• Very little change in appearance even when exposed to light or in a hot and humid climate.
• Suitable for bonding materials such as glass and polycarbonate to plastics.
• Manufactured in a clean room.
• Outgassing of plastics such as polycarbonate controls bubble formation and allows ink to follow uneven surfaces.
Thickness
0.05mm
