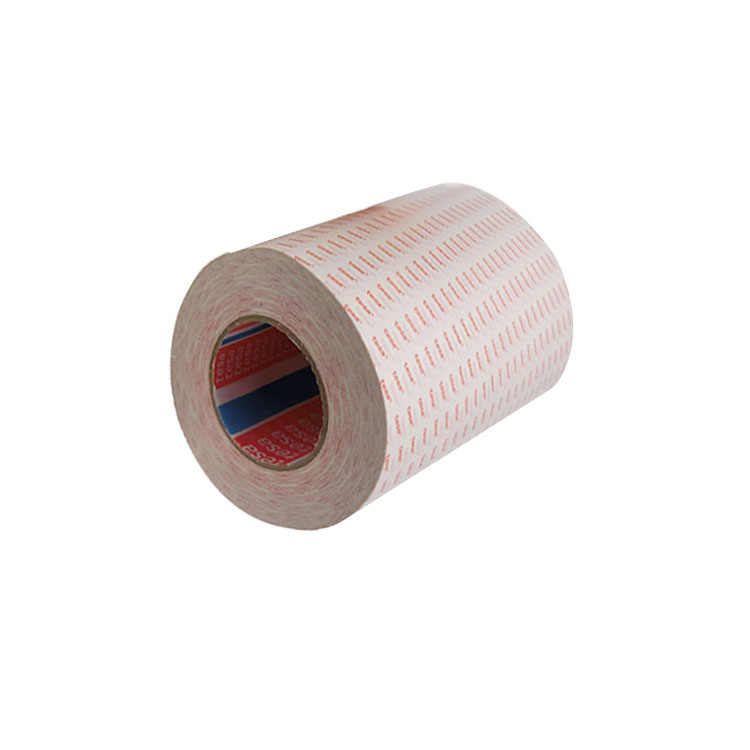

Tesa 8854 Double Sided FPC Mounting Tape For NFC Circuit Board Pasting

Brand Name: Tesa
Model Number: 8854
Adhesive Side: Double Sided
Adhesive Type: Acrylic
Design Printing: No printing
Material: Nonwovens
Feature: Heat-Resistant
Use: MASKING
SIZE: Customized
Thickness: 0.1mm

Tesa 8854 Double Sided FPC Mounting Tape For NFC Circuit Board Pasting

The tesa 8854 adopts a special modified acrylic adhesive system, which has excellent high-temperature resistance and is suitable for FPC bonding applications. The acrylic adhesive system has excellent high-temperature resistance (up to 260 ° C). The highly compliant ultra-thin non-woven fabric substrate has excellent die-cutting performance, which can effectively prevent edge overflow after die-cutting. High temperature resistant Glasin release paper makes it easy to peel off after welding reflow, without reverse release.



Product characteristics:

Having sufficient adhesion and high retention after the welding reflow process.
High tensile strength.
Excellent die-cutting performance, special substrate not easy to overflow.
High adhesion to uneven surfaces.
High aging resistance.
Compliant with RoHS standards.



Application:

Suitable for high-temperature operating environments, can repeatedly enter high-temperature wave reflow soldering, and paste FPC circuit boards for electronic components.



Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.



Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain good performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.



If the Tesa 8854 Double Sided FPC Mounting Tape For NFC Circuit Board Pasting to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We are equipped with a production factory to serve you.

Application:

Suitable for high-temperature operating environments, can repeatedly enter high-temperature wave reflow soldering, and paste FPC circuit boards for electronic components.

Product Name
Tesa 8854 Double Sided FPC Mounting Tape For NFC Circuit Board Pasting
Adhesive Type
Acrylic
color
Clear
Temperature resistance
100℃
Material
Nonwovens
Adhesion to 304 steel plate
30.2 oz/in (3.3 N/cm)
Features
1. Having sufficient adhesion and high retention after the welding reflow process.
2. High tensile strength.
3. Excellent die-cutting performance, special substrate not easy to overflow.
4. High adhesion to uneven surfaces.
5. High aging resistance.
6. Compliant with RoHS standards.
Thickness
0.1mm
