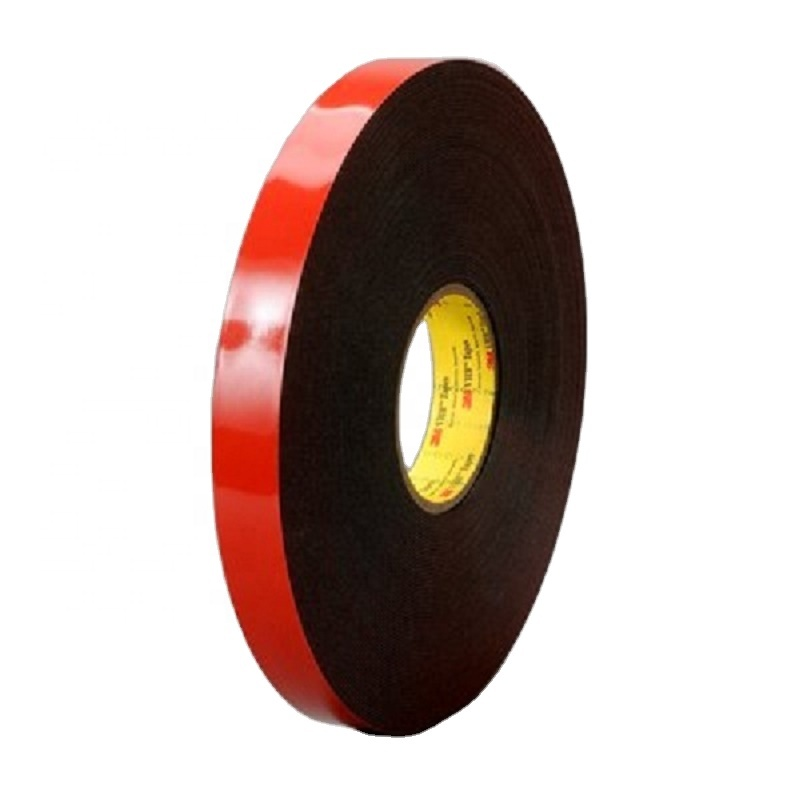

3M G23F B23F VHB Structural Glazing Tape for attaching glass panels to metal frames in curtain wall systems

Brand Name: 3M
Model Number: 3M G23F
Adhesive: Acrylic
Adhesive Side: Double Sided
Adhesive Type: Hot Melt, Pressure Sensitive
Design Printing: No printing
Material: Acrylic
Feature: Heat-Resistant
Use: MASKING
Color: Gray
Carrier Material: Acrylic

3M G23F B23F VHB Structural Glazing Tape for attaching glass panels to metal frames in curtain wall systems

3M G23F B23F VHB Structural Glazing Tapes are fully-cured, durable, high performance double-sided pressure sensitive acrylic foam tapes. They are used for attaching glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems replacing commonly used mechanical fasteners, gaskets or structural silicone sealants. Application performance history since 1990 and 3rd party test results demonstrate the outstanding durability, UV resistance and temperature performance of 3M VHB Tape acrylic foam chemistry.



Features:

  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Virtually invisible fastening keeps surfaces smooth
  • Used as an alternative to structural silicone and spacer tapes/gaskets
  • Gray, 0.090 in. (2.3 mm), multi-purpose adhesive and conformable acrylic foam core offers a good balance of strength and conformability



Applications:

Attach glass panels to metal frames (structural glazing).



Our Factory Competitive Advantages:

* Well Competitive Prices and High Quality Control
* Prompt Delivery
* Earth-friendly Products
* In a Variety of Design
* Small Order Acceptable
* OEM Accepted

Roll Size: 3″ paper or plastic core; tape width: 2mm-1200mm; standard width: 1200mm, standard length:50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request.Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.



High temperature 3m 471 tape pvc floor marking tape paint masking tape



If the 3M G23F B23F VHB Structural Glazing Tape for attaching glass panels to metal frames in curtain wall systems to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

Applications:

Attach glass panels to metal frames (structural glazing).

Model Number 3M G23F
Color Gray
Adhesive Acrylic
Adhesive Side Double Sided
Liner Red Polyethylene Film
Liner Color Red
Liner Thickness 0.125mm
Tape Thickness 2.3mm
Length as your request
Width as your request
90° Peel Adhesion 52.5N/cm   30lb/in
Normal Tensile 480 kPa   70lb/in²
Overlap Shear Strength 450 kPa   65lb/in²
Short-term Temperature Resistance 149°C   300°F
Long-term Teperature Tolerance 93°C   200°F
