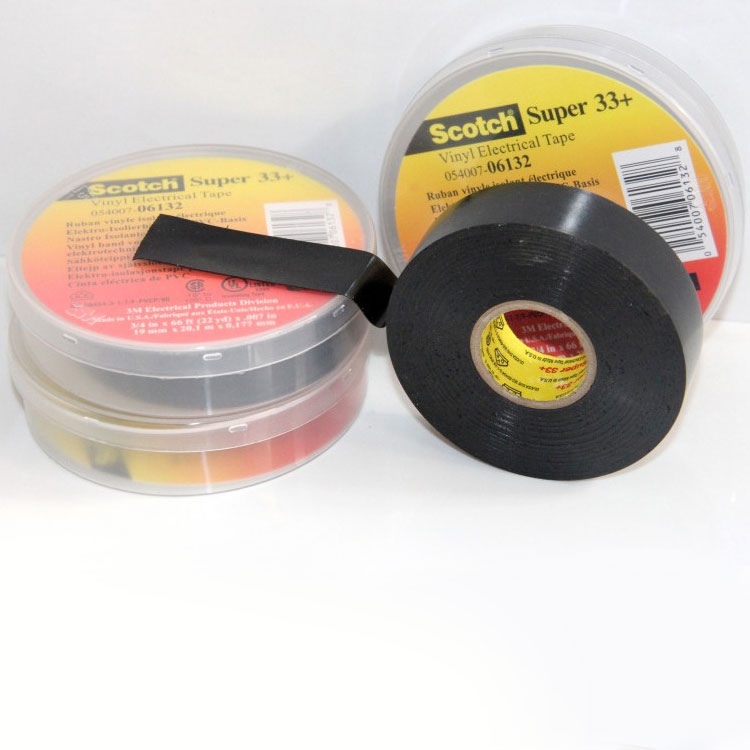

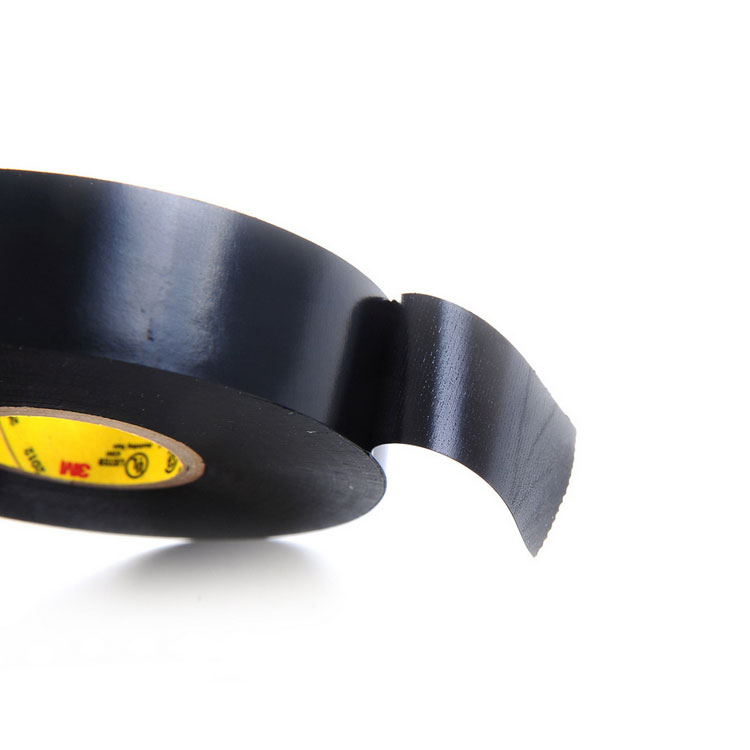

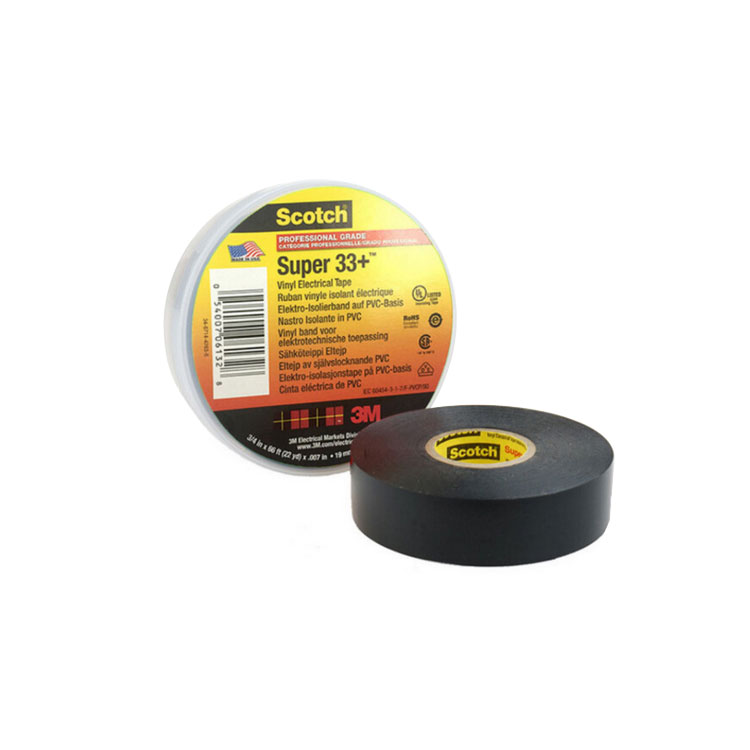

Equal to 3M Super 33+ Insulating tape black General PVC electrical tape

Brand Name:3M
Model Number:33+
Adhesive:Acrylic
Adhesive Side:Single Sided
Adhesive Type:Pressure Sensitive
Design Printing:No printing
Material:PVC
Thickness:0.18mm

Equal to 3M Super 33+ Electrical Insulating tape black General PVC electrical tape.

3M super 33 + insulating tape is an excellent grade, all-weather PVC insulating tape, which is suitable for the working temperature range from - 18 ℃ to 105 ℃. It has good shape ratio, UV resistance, acid and alkali resistance, anti-corrosion and wear resistance. Its elastic base material and excellent adhesive have the effect of mechanical protection and moisture resistance, so as to ensure the electrical characteristics.



Applications:

* Main insulation for all wire and cable joints with voltage class of 600V and below 105 ℃,
* It is used for the electrical insulation of buses with voltage levels below 600V and 105 ℃, as well as the sheath protection of high-voltage and low-voltage cables,
*For the protection and repair of sheath joints of high voltage cables,
*For binding wires and cables

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Our Factory Competitive Advantages:

Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.

Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.

OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.

Shelf Life: To obtain best performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.



High temperature 3m 471 tape pvc floor marking tape paint masking tape



If the Equal to 3M Super 33+ Insulating tape black General PVC electrical tape to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We’re equipped with a productive factory at your service.

Applications:
* Main insulation for all wire and cable joints with voltage class of 600V and below 105 ℃,
* It is used for the electrical insulation of buses with voltage levels below 600V and 105 ℃, as well as the sheath protection of high-voltage and low-voltage cables,
*For the protection and repair of sheath joints of high voltage cables,
*For binding wires and cables

We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.

Product Name
Equal to 3M Super 33+ Electrical Insulating tape black General PVC electrical tape
Adhesive Type
Acrylic
color
black
Temperature resistance
-18℃-105℃
Adhesion to 304 steel plate
51N/100mm
Features
• Professional group all-weather PVC insulating tape
• Suitable for working in cold weather conditions
• UL certification
• Operating temperature: - 18 ℃ - 105 ℃
• Voltage level: ul510 600V
• Dielectric strength: 1150v / mil
thickness
0.18mm
