EPDM Sealing Strip With Conductive Cloth For Cabinet Electromagnetic Shielding
Brand Name: Xinst
Model Number: OEM
Adhesive: Acrylic
Adhesive Side: Single Sided
Adhesive Type: Pressure Sensitive
Design Printing: No printing
Material: conduction cloth+EPDM foam
Feature: Heat-Resistant
Use: MASKING
SIZE: Customized
Thickness: 1-50mm
EPDM Sealing Strip With Conductive Cloth For Cabinet Electromagnetic Shielding

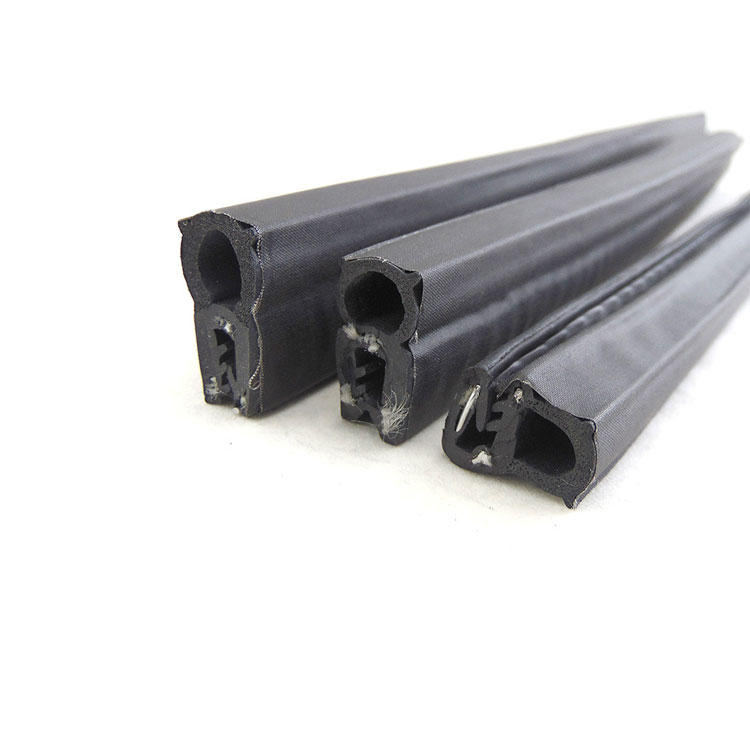

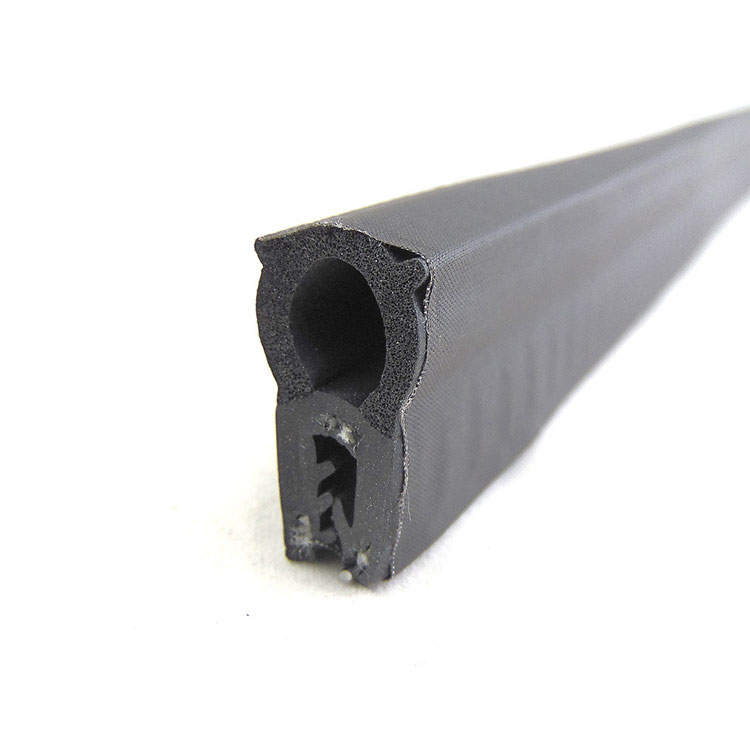

The EPDM (ethylene propylene diene rubber) rubber core is wrapped in conductive cloth and extruded through galvanized wire. The conductive cloth is first plated with metallic nickel on polyester fibers, followed by a highly conductive copper layer. The copper layer is then plated with nickel metal that is resistant to oxidation and corrosion. The combination of copper and nickel provides excellent conductivity and good electromagnetic shielding effect, with a shielding range of 100K-3GHz.
Application
Solve electromagnetic leakage in cabinet gaps, designed specifically for outdoor cabinets, using this sealing strip or gasket at the gaps.
We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.
Our Factory Competitive Advantages:
Well Competitive Prices and High Quality Control.
Prompt Delivery.
Earth-friendly Products.
In a Variety of Design.
Small Order Acceptable.
OEM Accepted.
Roll Size: 3″ paper or plastic core;tape width: 2mm -1200mm; standard width: 1200mm, standard length: 50M.
OEM Size: Special length, thickness or combinations can be supplied per customer’s request. Products can be supplied in roll, tape, sheets or shapes per customer’s request. Only you provide the CAD drawing, we can die cut any size for you.
Shelf Life: To obtain good performance, use this product within 12 months from date of delivery and store under normal conditions of 60 ºC to 80ºF (16 ºC to 27ºC) and 40 to 60% R.H. in the original carton.
If the EPDM Sealing Strip With Conductive Cloth For Cabinet Electromagnetic Shielding to your requirement, please be free to buy the quality products made in China with our professional manufacturers and suppliers in China. We are equipped with a production factory to serve you.
Application
Solve electromagnetic leakage in cabinet gaps, designed specifically for outdoor cabinets, using this sealing strip or gasket at the gaps.
We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.
Product Name
|
EPDM Sealing Strip With Conductive Cloth For Cabinet Electromagnetic Shielding
|
Adhesive Type
|
Acrylic
|
color
|
Black
|
Temperature resistance
|
100℃
|
Material
|
Conductive cloth + EPDM foam
|
Adhesion to 304 steel plate
|
30.2 oz/in (3.3 N/cm)
|
Features
|
It has good UV resistance, water resistance, and acid resistance.
|
Thickness
|
1-50mm
|
